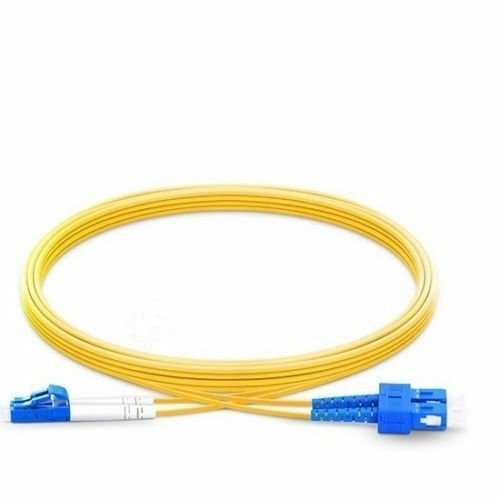

0.5M LC UPC to SC UPC Duplex 2.0mm PVC(OFNR) 9/125 Single Mode Fiber Cable- 8342
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Type | Optical Network Cable |
| Features | Fiber Cable |
| Color | Yellow |
| Cable Length | 0.5m |
| MPN | Does Not Apply |
| Fiber Type | Single-Mode |
| Cable Type | Duplex |
| Brand | Fiberopticdistribution |
High Quality and Cost-effective 9/125μm Singlemode Fiber Patch CableThe 9/125μm single mode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling. We also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.Item DetailsConnector: LC to SCJacket OD: standard 2.0 (default)/0.9/3.0mmFiber Mode: 9/125μmJacket Color: YellowPolish: UPC to UPCWavelength: 1310/1550nmFiber Type: DuplexJacket Material: PVC(default)/LSZH/OFNPInsertion loss: LC ≤0.2dB; SC ≤0.2dBInterchangeability: ≤0.2dBReturn loss: LC ≥50dB; SC ≥50dBVibration: ≤0.2dBOperating temperature: -40~75°CStorage temperature: -45~85°CFiber Grade: G652D (G657A1 can also be offered, please contact We for price and details.)How to correctly choose between PVC, LSZH and OFNP?PVC Cable: PVC cable resistant to oxidation and degradation, is used for horizontal runs between the table. It is also work for vertical runs if the building features a contained ventilation system running through the duct work. LSZH Cable: LSZH cable has a special flame-retardant coating, and excellent fire safety characteristics of low smoke, low toxicity and low corrosion. It is same to PVC cable for horizontal runs between the table. OFNP Cable: OFNP cable is a space within the building created by building components, designed for the movement of environmental air, complies with the NFPA fire safety. It is usually work for vertical runs between floors. 1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3). 2. The effective modal bandwidth for OM4 is more than double that of OM3. 3. For OM4 patch cable, it is 4700 MHz.km while for OM3, it is 2000 MHz.km.Custom and OEM1. Customize Jacket MaterialsPVCOFNPLSZHOFNR2. Customize Cable ColorRedBlueGreyPurple3. Customize Cable ConnectorD4SMA905VF45MU4. Customize Cable Length5M10M50M100M
